120kW Dual Gun DC Fast Charging Station CCS2 EV Charger OCPP 1.6 Commercial Charging Parking Lot

Description:

European Standard DC Fast Charging Station 60kW 120kW Dual Gun CCS2 CCS1 GBT EV Charger OCPP...


  • Output Power: 60kw-120kw
  • Input Voltage: 380 V
  • Voltage Range: AC380V±15%,3P5W
  • Operating Temperature: -30C-70'C(Derating above 55°C)
  • Overall Efficiency: ≥96%
  • Startup Method: APP/Local/VIN/RFID
  • Payment Method: RFID, Alipay.WeChat,APP,etc...

Product Detail

Product Video

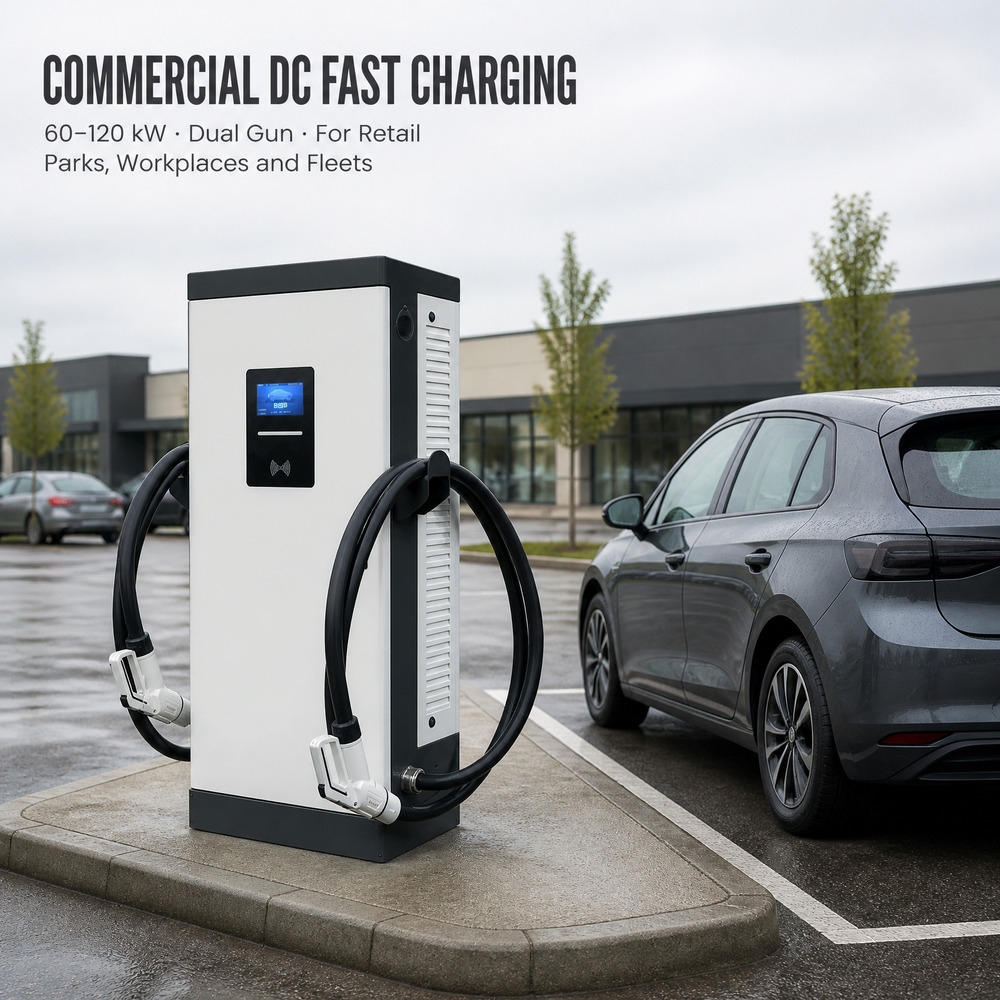

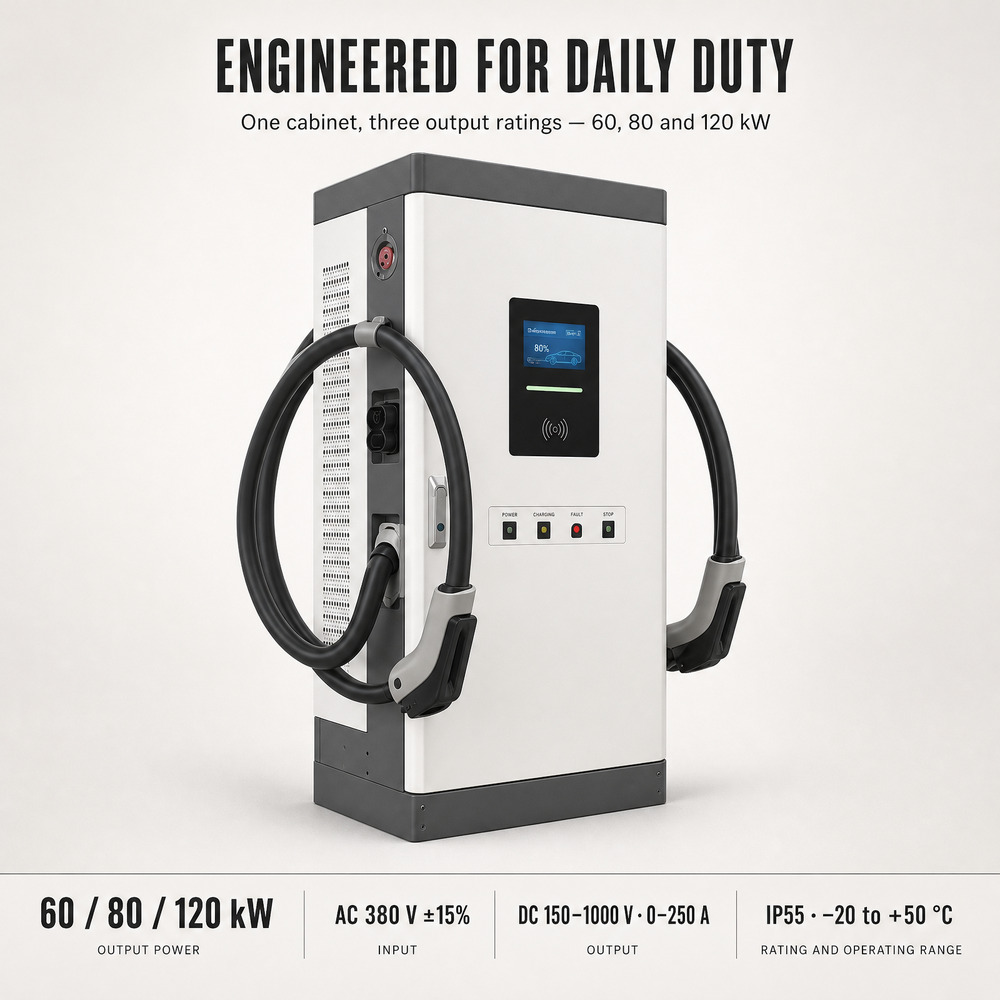

60kW / 80kW / 120kW The Right Power for Every Site Size Three power ratings on one cabinet platform (1490 x 680 x 355 mm, 110 140 kg) covering workplace, shopping mall, school and public parking projects. Start with one unit, scale to a site with the same spare-parts list.

Dual Gun with Output Split Power Two DC guns on one cabinet with output power splitting - charge two vehicles at once or concentrate full power on one, whichever suits your traffic pattern.

Multi-Standard Connectors: CCS2 / CCS1 / GBT / CHAdeMO Connector options that match the EV fleet in your market, so one charger model can serve European, American, Chinese-standard and CHAdeMO vehicles.

OCPP 1.6 Compliant Platform - Full Remote Operations OCPP-based platform for charging-station asset data management, real-time online monitoring and operation display, with remote firmware updates and load balancing built in.

Built for Outdoor Commercial Use: IP55, -20~50℃, <15W Standby IP55 rating, -20 to 50℃ operating range, standby power under 15W and anti-mildew / moisture-proof / anti-salt-spray treated internal components - engineered for parking lots and coastal sites.

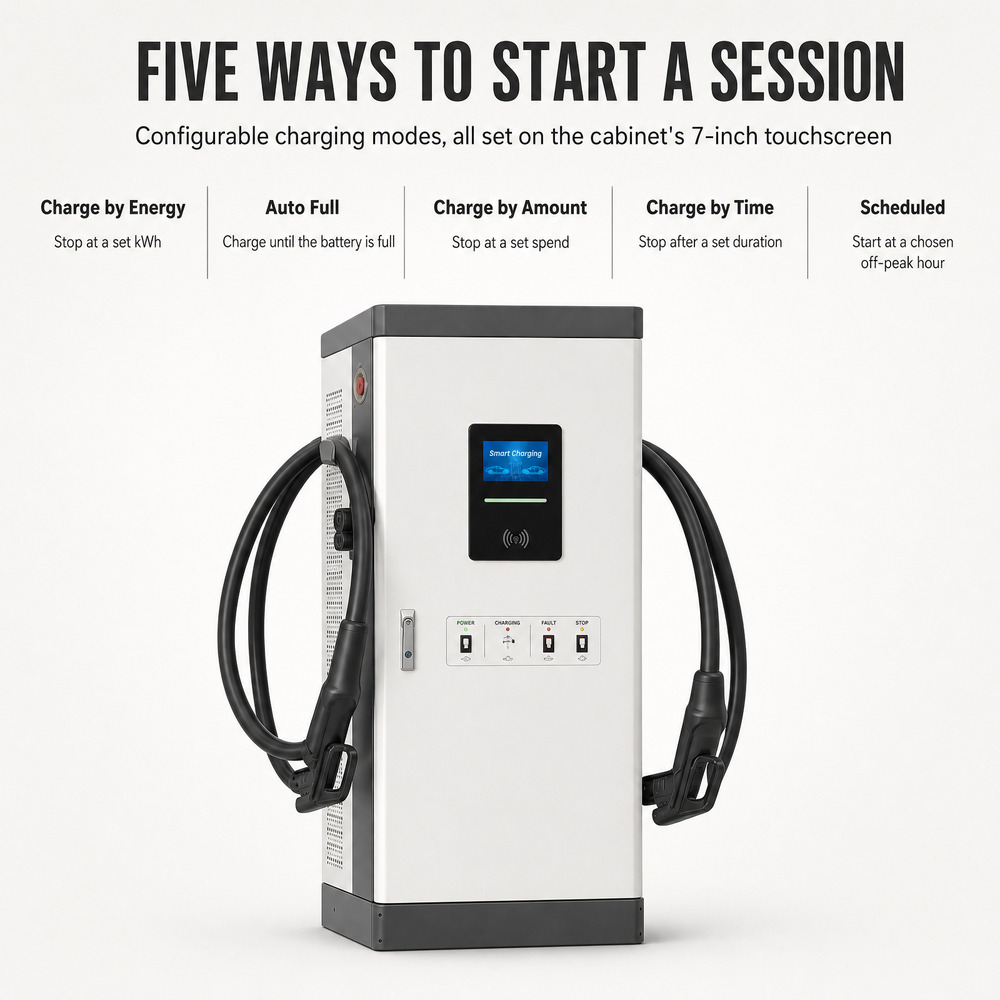

7-Inch Multi-Language Touch Screen, Three Payment Methods 7-inch multi-language touch screen with Mobile APP, RFID card and POS payment; optional charging modes include fixed energy, fixed amount, fixed time, auto-full and scheduled charging during off-peak hours.
